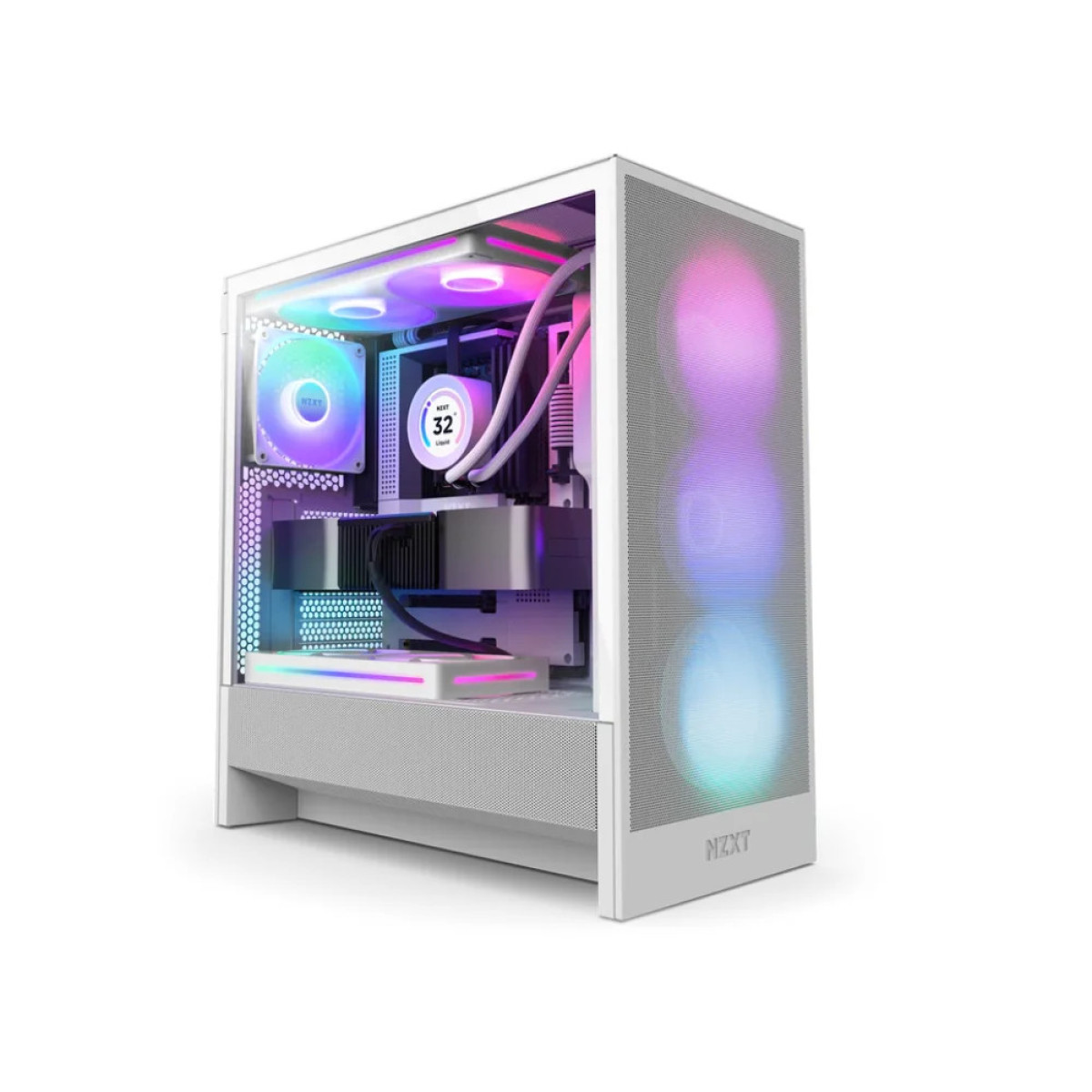

Product Type: Mid-Tower PC Case
Series: NZXT H5 Flow (2024)
Model: H5 Flow RGB (2024)
Color: White

General

Case Material: SGCC Steel & Ultra-Clear Tempered Glass

Case Type: Compact Mid-Tower

Motherboard Support

• E-ATX (Up to 277mm Wide)
• ATX
• Micro-ATX
• Mini-ITX

Storage Support

Drive Bays

• 1 × 3.5″ HDD
• 2 × 2.5″ SSD

Expansion

Expansion Slots: 7

Vertical GPU Support: Compatible with NZXT Vertical GPU Mounting Kit (2024 Edition)

Front I/O

USB Ports

• 1 × USB 3.2 Gen 2×2 Type-C
• 1 × USB 3.2 Type-A

Audio

• 3.5mm Headset Jack

Controls

• Power Button

Cooling Support

Front

• 3 × 120mm Fans
• 2 × 140mm Fans

Top

• 2 × 120mm Fans
• 2 × 140mm Fans

Bottom

• 2 × 120mm Fans

Rear

• 1 × 120mm Fan

Pre-Installed Fans

Front

• 1 × F360 RGB Core Fan (Single-Frame RGB)

Rear

• 1 × F120Q Airflow Fan

Radiator Support

Front

• Up to 360mm
• Up to 280mm

Top

• Up to 240mm
• Up to 280mm (Low-Profile Memory Required)

Rear

• Up to 120mm

RGB Lighting

Lighting: Addressable RGB (ARGB)

Control: 5V ARGB Connection

Software Support: Compatible with NZXT CAM and standard 5V ARGB motherboard synchronization.

Clearance

Maximum CPU Cooler Height: 170mm

Maximum Graphics Card Length: 410mm

Maximum Power Supply Length: 200mm

Cable Management Clearance: 28.7mm

Dust Protection

Integrated High-Performance Mesh Panels:

• Front
• Top
• Bottom

Dimensions & Weight

Dimensions (H × W × D): 465 × 225 × 430mm

Net Weight: 7.63kg

Package Contents

• NZXT H5 Flow RGB (2024) White Case
• 1 × F360 RGB Core Fan
• 1 × F120Q Airflow Fan
• Installation Accessories
• User Guide (NZXT)
