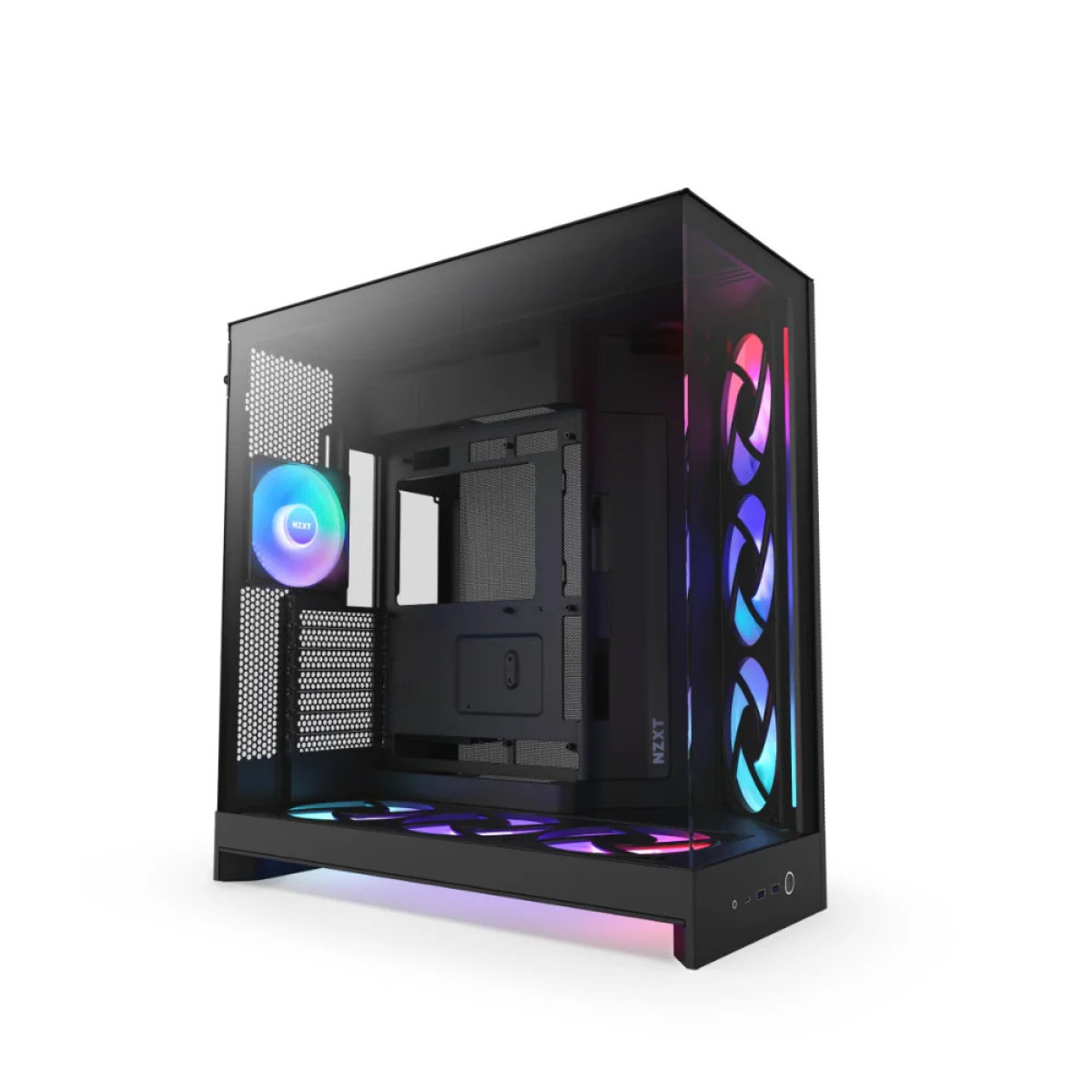

Product Type: Dual-Chamber Mid-Tower PC Case
Series: NZXT H9 Flow RGB+
Model: H9 Flow RGB+
Color: Black

General

Case Material: SGCC Steel & Ultra-Clear Tempered Glass

Case Type: Dual-Chamber Mid-Tower

Motherboard Support

• E-ATX (Up to 277mm Wide)
• ATX
• Micro-ATX
• Mini-ITX

Rear-Connect Motherboard Support:

• BTF
• MSI Project Zero
• Other Back-Connect ATX Motherboards

Storage Support

Drive Bays

• 2 × 3.5″ HDD
• 4 + 2 × 2.5″ SSD

Expansion

Expansion Slots: 7

Front I/O

USB Ports

• 1 × USB 3.2 Gen 2×2 Type-C
• 2 × USB 3.2 Type-A

Audio

• 3.5mm Headset Jack

Controls

• Power Button

Cooling Support

Front-Right

• 3 × 120mm Fans
• 3 × 140mm Fans

Top

• 3 × 120mm Fans
• 3 × 140mm Fans

Bottom

• 3 × 120mm Fans
• 3 × 140mm Fans

Rear

• 1 × 120mm Fan

Pre-Installed Fans

Front-Right

• 1 × F420 RGB Core Fan

Bottom

• 1 × F420 RGB Core Fan

Rear

• 1 × F120 RGB Core Fan

Radiator Support

Front-Right

• Up to 420mm

Top

• Up to 420mm

Bottom

• Up to 360mm

Rear

• Up to 120mm

RGB Lighting

Lighting: Addressable RGB (ARGB)

Control: Integrated NZXT Control Hub

Software Support: Compatible with NZXT CAM software for RGB lighting, fan speed control, and system monitoring. (NZXT)

Clearance

Maximum CPU Cooler Height: 165mm

Maximum Graphics Card Length:

• Up to 459mm (Standard Fan Configuration)
• Up to 410mm (With 420mm Radiator & Fans Installed)

Maximum Power Supply Length: 200mm

Dust Protection

Integrated Dust Protection:

• High-Performance Mesh Panels
• Removable Magnetic Bottom Dust Filter

Dimensions & Weight

Dimensions (H × W × D): 506 × 315 × 481mm

Net Weight: 13.4kg

Package Contents

• NZXT H9 Flow RGB+ White Case
• 2 × F420 RGB Core Fans
• 1 × F120 RGB Core Fan
• NZXT Control Hub
• Installation Accessories
• User Guide (NZXT)
