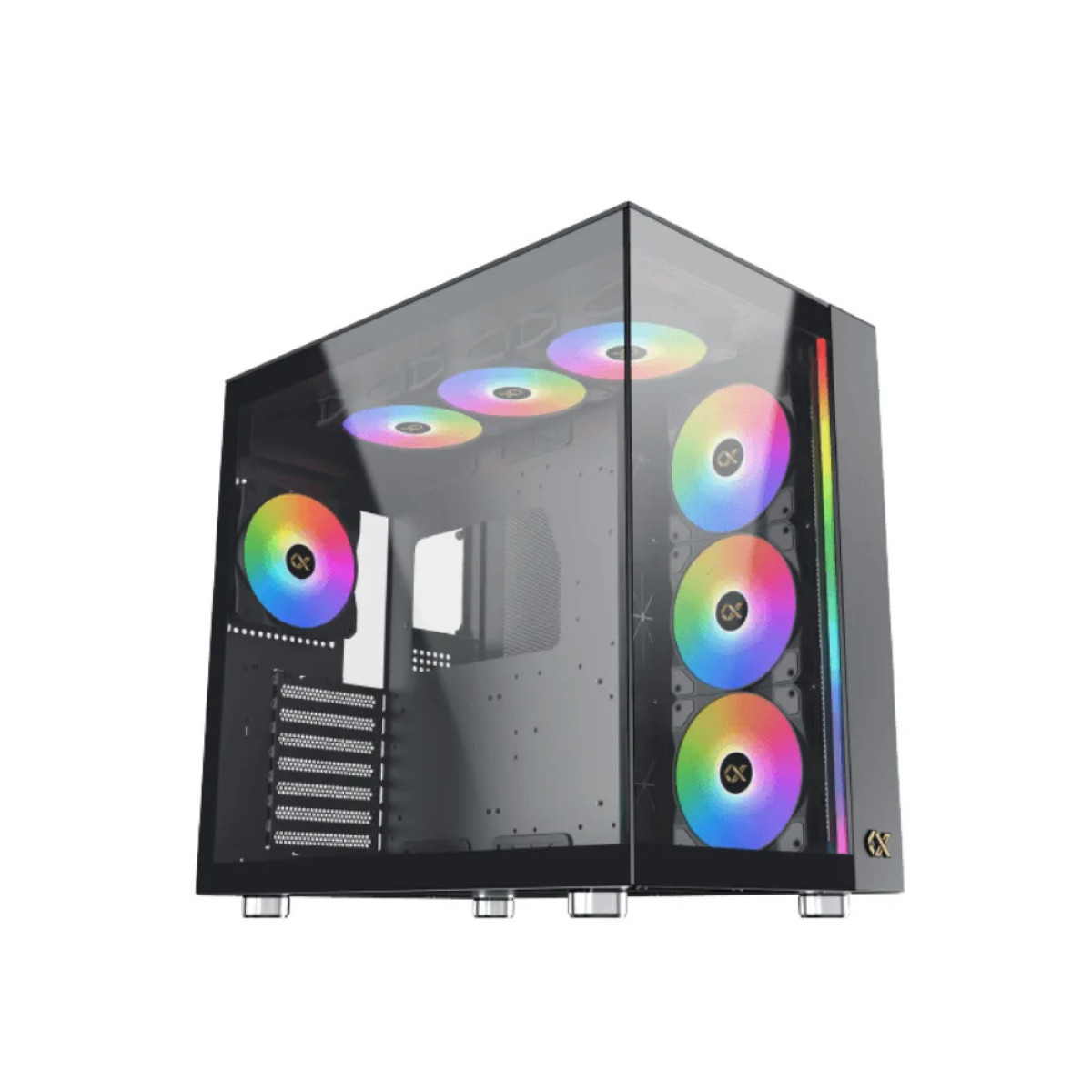

Product Type: E-ATX PC Case
Series: AQUA Ultra Air
Color: Black
Material: 0.8 mm SPCC Steel

General

• Dimensions (L × W × H): 460 × 285 × 445 mm

• Case Type: E-ATX

• Power Supply Type: Standard PS2 ATX PSU

• Maximum PSU Length: 220 mm

Motherboard Compatibility

• E-ATX

• ATX

• Micro-ATX

• Mini-ITX

Component Clearance

• Maximum CPU Cooler Height: 185 mm

• Maximum GPU Length: 430 mm

• Maximum PSU Length: 220 mm

Cooling Support

Top:

• 3 × 120 mm

Motherboard Side:

• 3 × 120 mm

• 3 × 140 mm

Bottom:

• 3 × 120 mm

• 3 × 140 mm

Rear:

• 1 × 120 mm

• Maximum Fan Support: Up to 10 Fans

Radiator Support

Top:

• 240 / 360 mm

Motherboard Side:

• 240 / 280 / 360 mm

Bottom:

• 240 / 280 / 360 mm

GPU Support

• Maximum GPU Length: 430 mm

• Vertical GPU Installation: Supported

• Vertical GPU Slot: Supported

Storage

Removable HDD/SSD Cages:

• 3.5″ HDD: Up to 4

• 2.5″ SSD: Up to 4

• Removable Cages: 2

Expansion Slots

• Standard Expansion Slots: 7

• Vertical GPU Installation: Supported

Included Fans

• 1 × Z22A Standard Fan

• 6 × Z22A Reverse Fans

• Total: 7 Pre-Installed Fans

• ARGB Remote Control Box: Included

Front / Top I/O

• USB 3.0: 2

• USB 2.0: 2

• USB Type-C: 1

• HD Audio: 1

• Power Button: 1

• Reset Button: 1

• LED Switch: 1
