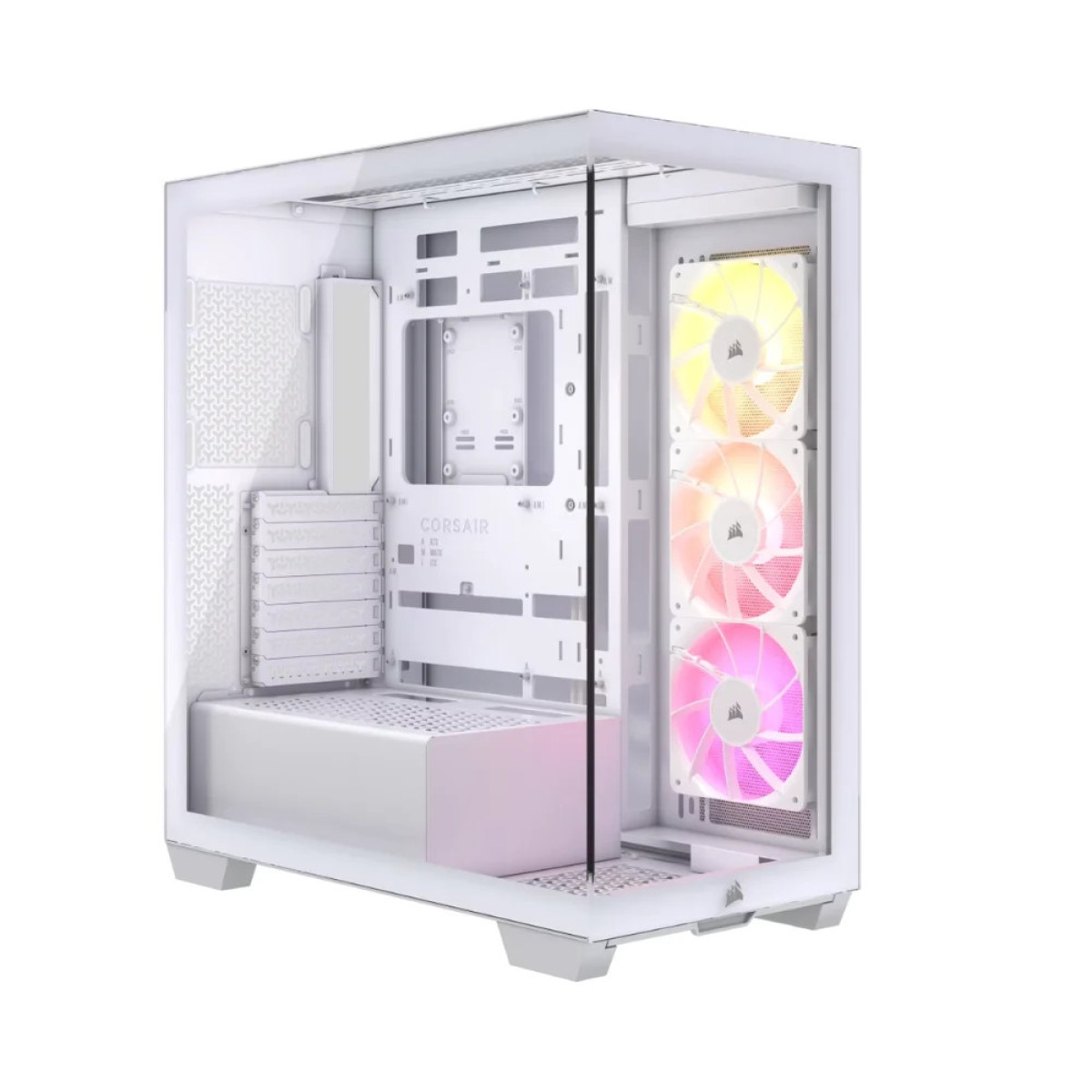

Product Type: Dual-Chamber Mid-Tower PC Case
Series: CORSAIR 3500X iCUE LINK RGB
Color: White

General

Case Material: Steel & Tempered Glass
Case Type: Mid-Tower

Motherboard Support:

• Mini-ITX

• Micro-ATX

• ATX

• E-ATX (Up to 305 × 277mm)

• Reverse Connector Motherboards Compatible (ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth) (CORSAIR)

Storage Support

Drive Bays:

• 2 × 3.5″ HDD Bays

• 2 × 2.5″ SSD Bays (CORSAIR)

Expansion

Expansion Slots:

• 7 × Horizontal

• 4 × Vertical (Vertical GPU Mount Kit Sold Separately) (CORSAIR)

Front I/O

USB Ports:

• 1 × USB 3.2 Gen 2 Type-C

• 2 × USB 3.2 Gen 1 Type-A

Audio:

• 1 × Headphone / Microphone Combo Jack (CORSAIR)

Cooling Support

Top:

• 3 × 120mm Fans

• 2 × 140mm Fans

Side:

• 3 × 120mm Fans

• 2 × 140mm Fans

Bottom:

• 3 × 120mm Fans

• 1 × 140mm Fan

Rear:

• 1 × 120mm Fan

Front:

• Not Supported (Wraparound Tempered Glass Panel) (CORSAIR)

Pre-Installed Fans

Side:

• 3 × CORSAIR RX120 RGB PWM Fans

Controller:

• CORSAIR iCUE LINK System Hub Included (CORSAIR)

Radiator Support

Top:

• 360mm

• 280mm

• 240mm

Side:

• 360mm

• 280mm

• 240mm

Rear:

• 120mm

Front:

• Not Supported

Bottom:

• Not Supported (CORSAIR)

Clearance

Maximum CPU Cooler Height: 170mm
Maximum Graphics Card Length: 425mm
Maximum Power Supply Length: 180mm (CORSAIR)

Cable Management

Cable Routing Space: 38mm Behind Motherboard Tray

Dust Protection

Dust Filters:

• Top

• Bottom

• Side (CORSAIR)

Panels

Front Panel: Wraparound Tempered Glass
Left Side Panel: Tempered Glass

Dimensions & Weight

Dimensions (L × W × H): 460 × 240 × 506mm

Weight: 10.54kg (CORSAIR)
