Technical Specifications

• Brand: AORUS

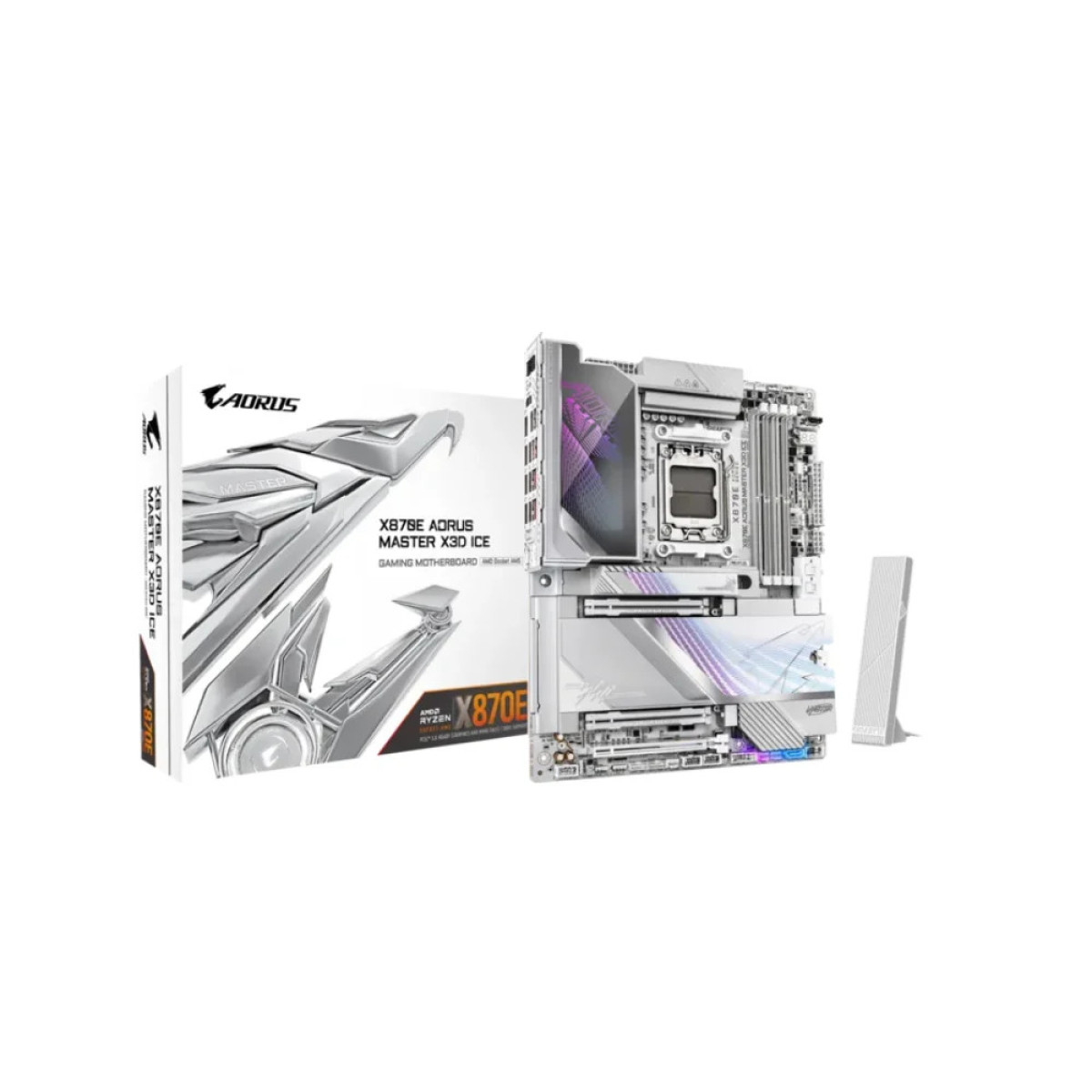

• Model: X870E MASTER X3D
• Product Type: ATX Motherboard
• Chipset: AMD X870E
• CPU Socket: AMD Socket AM5
• Processor Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Memory Support:
  • 4 × DDR5 DIMM Slots
  • Up to 256GB DDR5 Memory
  • Memory Speeds up to 9000 MT/s (OC)
  • AMD EXPO™ & Intel® XMP Support
• Expansion Slots:
  • 1 × PCIe 5.0 x16
  • 1 × PCIe 5.0 x8
  • 1 × PCIe 4.0 x4
• Storage:
  • 5 × M.2 NVMe Slots
    • 2 × PCIe 5.0
    • 3 × PCIe 4.0
  • 2 × SATA 6Gb/s
  • RAID 0 / 1 / 5 / 10 Support
• Graphics Outputs:
  • 2 × USB4 Type-C® (DisplayPort)
  • 1 × HDMI 2.1
• Networking:
  • 10GbE LAN
  • 5GbE LAN
  • Wi-Fi 7 (802.11be)
  • Bluetooth® 5.4
• Audio:
  • Realtek® ALC1220 HD Audio Codec
  • ESS ES9118 DAC
  • DTS:X® Ultra
  • Optical S/PDIF Out
• Rear I/O:
  • 2 × USB4 Type-C® (40Gb/s)
  • 1 × USB 3.2 Gen2x2 Type-C
  • 1 × USB 3.2 Gen2 Type-C
  • 7 × USB 3.2 Gen2 Type-A
• Cooling Features:
  • Advanced VRM Thermal Armor
  • M.2 Thermal Guard XL
  • Smart Fan 6
• Exclusive Features:
  • X3D Turbo Mode 2.0
  • D5 Bionic Corsa
  • AI SNATCH
  • DriverBIOS
  • EZ-Latch Plus
  • M.2 EZ-Latch Click
  • Q-Flash Plus
  • Debug Zone (Power, Reset & Clear CMOS Buttons)
  • RGB Fusion
• Operating System: Windows 11 (64-bit)
