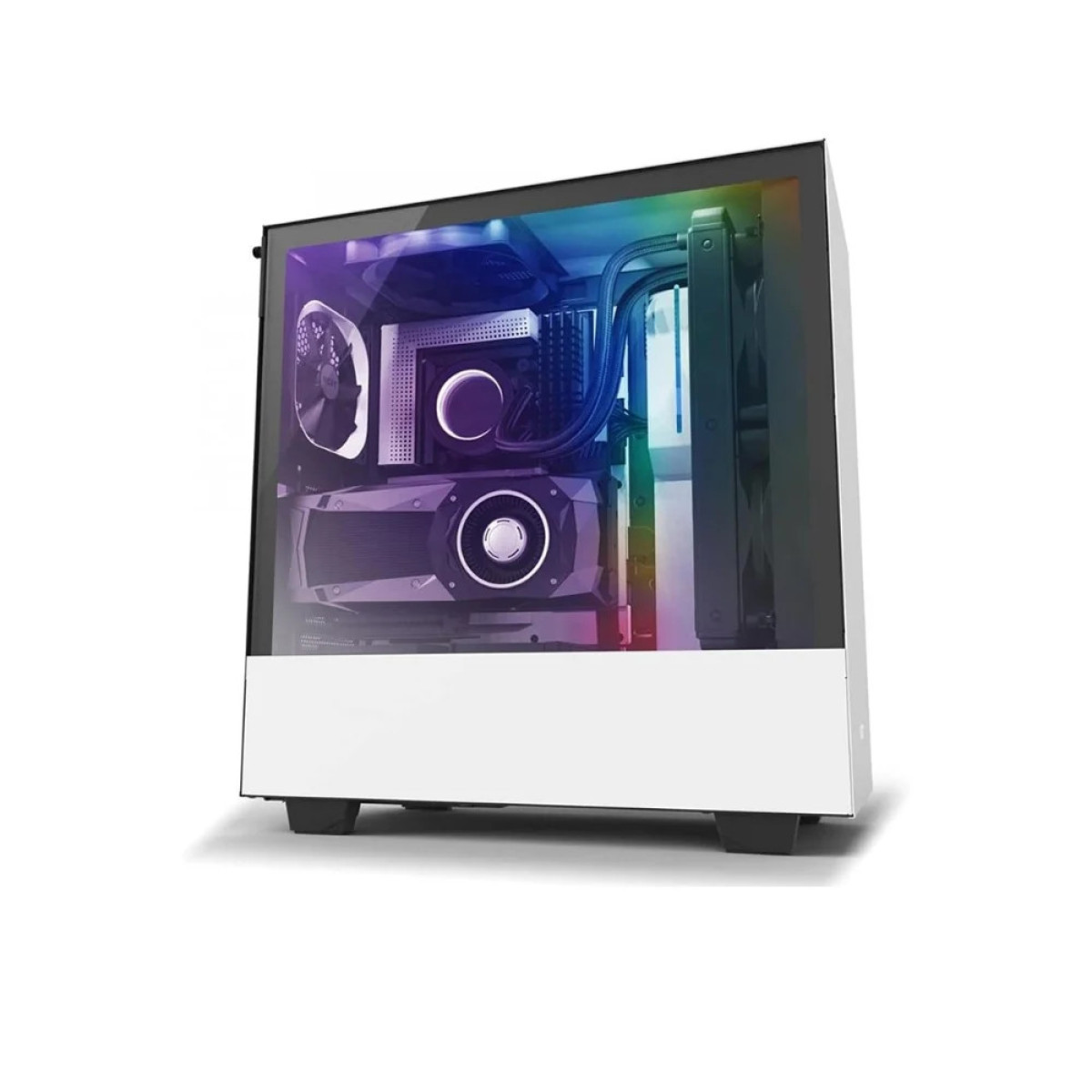

Product Type: Mid-Tower PC Case
Series: NZXT H Series
Model: H510i
Color: Matte Black / White

General

Case Material: SGCC Steel & Tempered Glass

Case Type: Compact Mid-Tower

Motherboard Support

• ATX
• Micro-ATX
• Mini-ITX

Storage Support

Drive Bays

• 2 × 3.5″ HDD
• 1 × 2.5″/3.5″ Combo Bay
• 2 × Dedicated 2.5″ SSD Mounts

Expansion

Expansion Slots: 7

Vertical GPU Support: 2 Vertical Slots (Riser Cable Sold Separately)

Front I/O

USB Ports

• 1 × USB 3.2 Gen 2 Type-C
• 1 × USB 3.2 Gen 1 Type-A

Audio

• 3.5mm Headset Audio Jack

Controls

• Power Button

Cooling Support

Front

• 2 × 120mm Fans
• 2 × 140mm Fans

Top

• 1 × 120mm Fan
• 1 × 140mm Fan

Rear

• 1 × 120mm Fan
• 1 × 140mm Fan

Pre-Installed Fans

Top

• 1 × 120mm Aer F Fan

Rear

• 1 × 120mm Aer F Fan

Radiator Support

Front

• Up to 280mm

Rear

• Up to 120mm

RGB Lighting

Lighting: Integrated RGB LED Strips

Control: NZXT Smart Device V2

Software Support: Compatible with NZXT CAM software for RGB lighting and fan control. (B&H Photo Video)

Clearance

Maximum CPU Cooler Height: 165mm

Maximum Graphics Card Length: 381mm

Maximum Power Supply Length: ATX Power Supply Supported

Dust Protection

Removable Dust Filters:

• Front Air Intake
• Top
• Bottom

Dimensions & Weight

Dimensions (H × W × D): 460 × 210 × 428mm

Net Weight: 6.8kg

Package Contents

• NZXT H510i Matte Black/White Case
• 2 × Pre-installed Aer F 120mm Fans
• NZXT Smart Device V2
• 2 × Integrated RGB LED Strips
• User Guide
• Accessories Kit
• Installation Hardware (B&H Photo Video)
