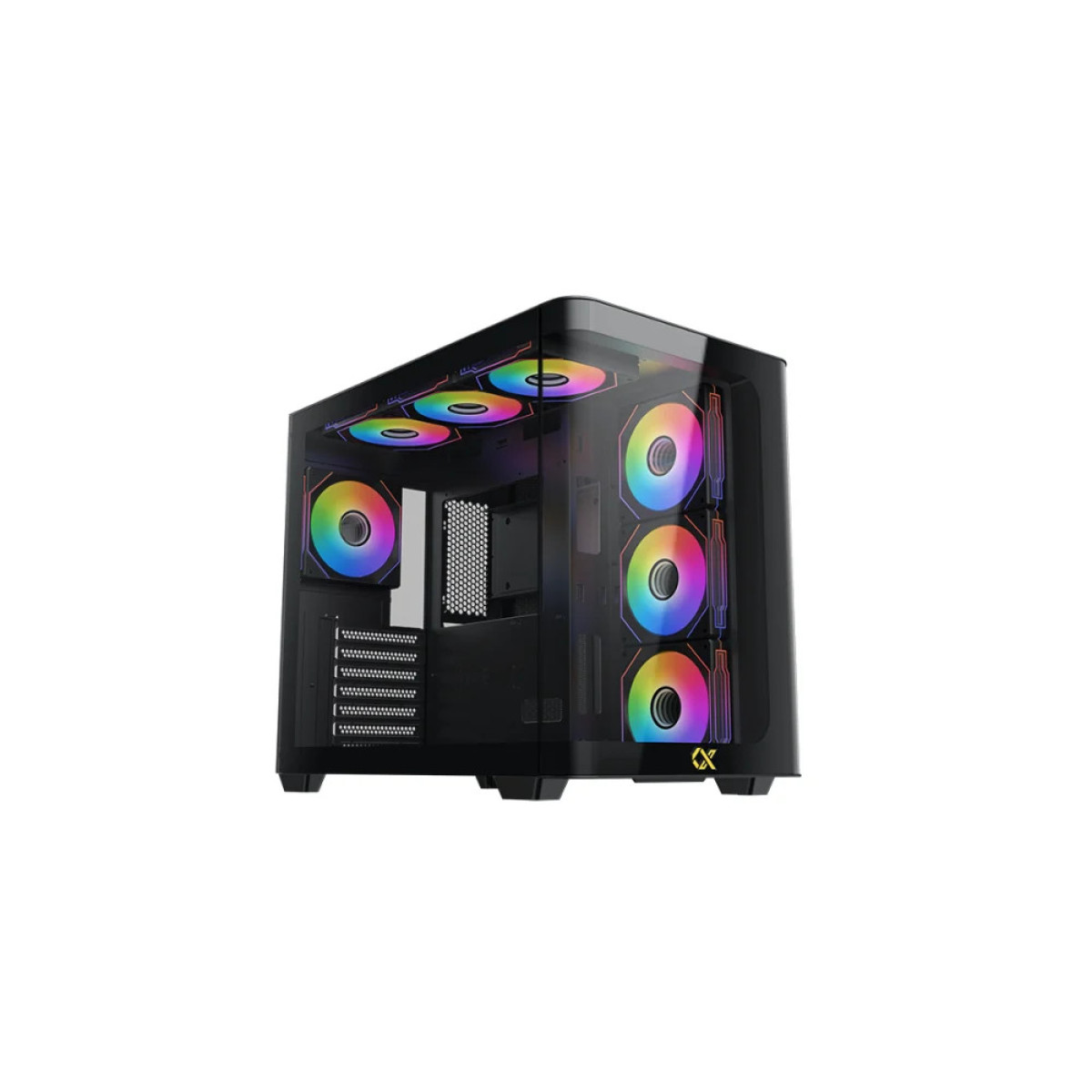

Product Type: E-ATX Mid-Tower PC Case
Series: PANO
Color: Black
Material: Steel

General

• Dimensions (L × W × H): 460 × 285 × 399 mm
• Case Type: E-ATX Mid-Tower
• Side Panel: Tempered Glass
• Front Panel: Curved Tempered Glass
• Power Supply Type: Standard PS2 ATX PSU
• Maximum PSU Length: 220 mm

Motherboard Compatibility

• E-ATX
• ATX
• Micro-ATX
• Mini-ITX

Component Clearance

• Maximum CPU Cooler Height: 160 mm
• Maximum GPU Length: 410 mm
• Maximum PSU Length: 220 mm

Cooling Support

Top:

• 3 × 120 mm
• 2 × 140 mm

Motherboard Side:

• 3 × 120 mm
• 2 × 140 mm

Bottom:

• 3 × 120 mm

Rear:

• 1 × 120 mm
• Maximum Fan Support: Up to 10 Fans

Radiator Support

Top:

• 240 / 280 / 360 mm

Motherboard Side:

• 240 / 280 mm
• Supports E-ATX motherboards up to 280 mm width

Rear:

• 120 mm

Storage

HDD Cage:

• 1 × 3.5″ HDD
• 2 × 2.5″ SSD

Bottom Panel:

• 1 × 3.5″ HDD or 1 × 2.5″ SSD

Expansion Slots

• Standard Expansion Slots: 7

Front I/O

• USB 3.0: 1
• USB 2.0: 2
• HD Audio: 1
• Power Button: 1
• Reset Button: 1
• LED Switch: 1
